Common specifications: 1-18T (customizable)
Maximum operating radius：8-22m
Qualification certificate: ISO/CE/EPA
Advantages: Spider crane manufacturer direct sales, first-hand source quality assurance
Payment terms: T/T, L/C
Spider cranes offer several key features that make them stand out in various construction and lifting applications:
Compact and Versatile: With a small footprint and flexible movement, they can easily access confined spaces and navigate through narrow passages.
High Mobility: They can move quickly to different work areas, adjusting to various terrains and ground conditions.
Strong Lifting Capacity: Despite their size, spider cranes provide robust lifting power, enabling them to handle heavy loads efficiently.
Outrigger Stability: Equipped with outriggers for added stability, ensuring safe and secure operations even on uneven ground.
Easy Operation: User - friendly controls simplify handling, making them accessible to a wide range of operators.

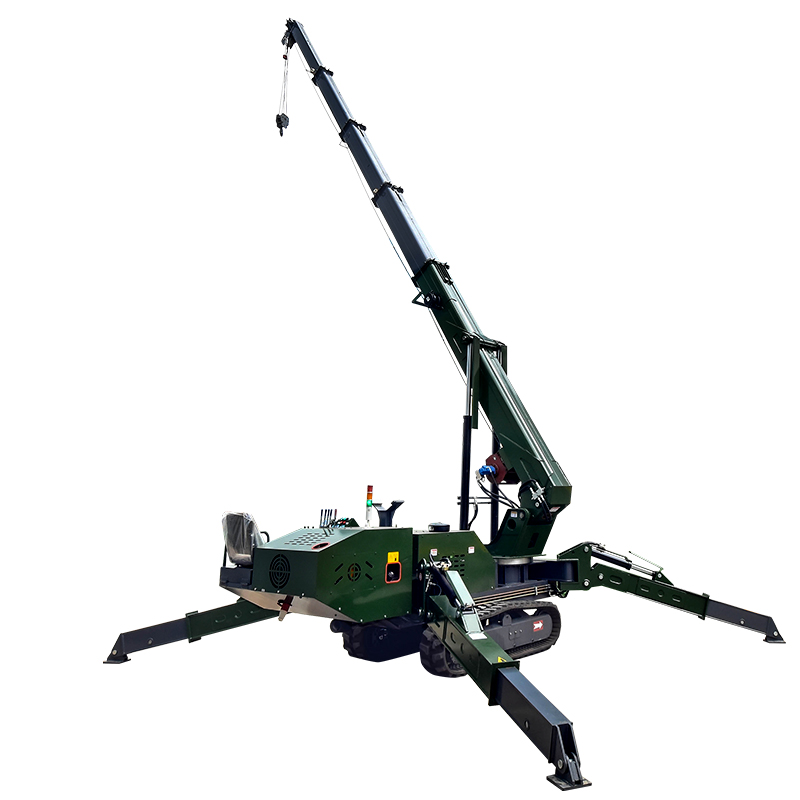

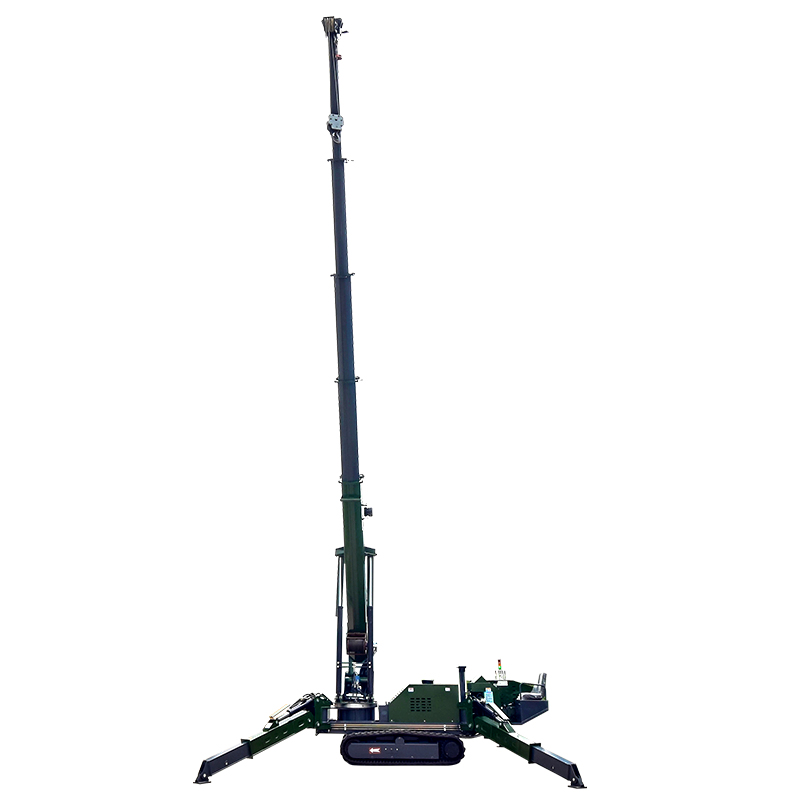

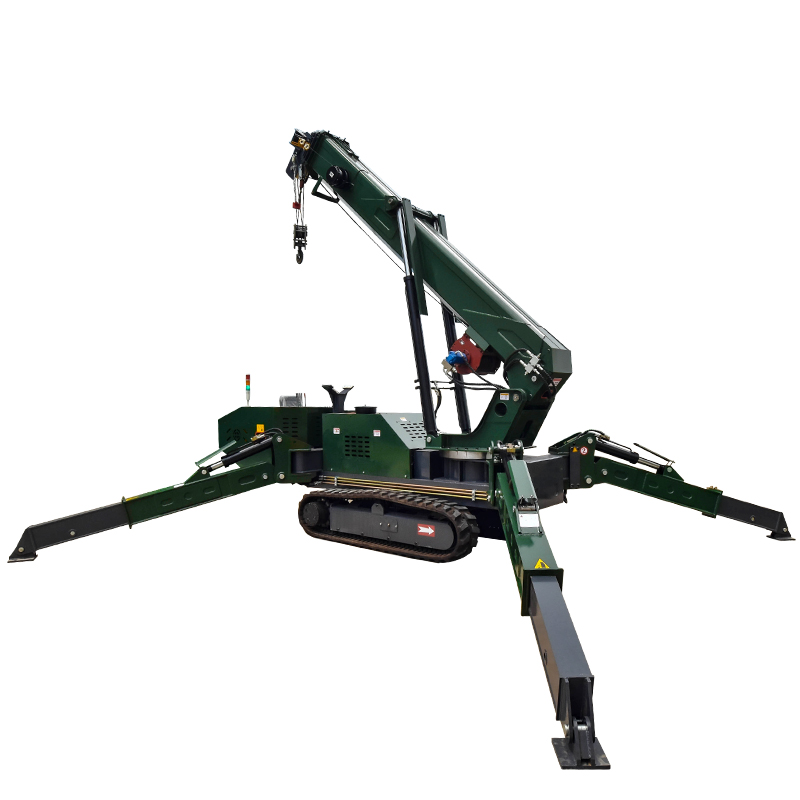

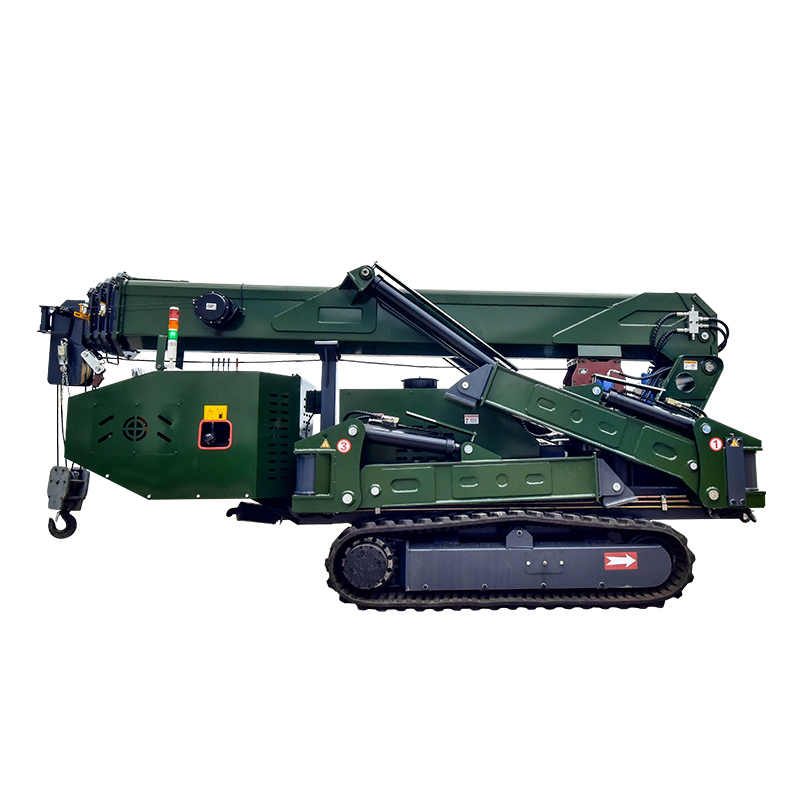

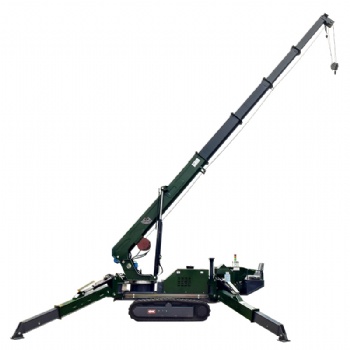

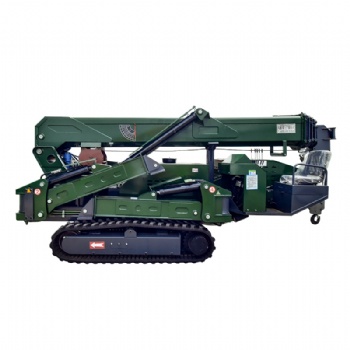

Product Real Photos
| Model No. | SPCR-1.0 | SPCR-2.0 | SPCR-3.0 | SPCR-5.0 | SPCR-8.0 | SPCR-10 | SPCR-12 | SPCR-14 |
| Specifications | 1T | 2T | 2.95T | 5T | 8T | 10T | 12T | 14T |
| Maximum operating radius | 5.2m*0.25T | 6m*0.25T | 9.3m*0.2T | 14.8m*0.3T | 17.1m*0.3T | 18.6m*0.4T | 21.1m*1.0T | 21.1m*1.2T |
| Maximum above - ground lifting height | 8m | 8m | 9.8m | 16m | 18m | 19.6m | 22m | 22m |
| Maximum below - ground lifting height | 20m | 20m | 45m | 65m | 80m | 80m | 80m | 80m |
| Hoisting method | Hydraulic motor drive | Hydraulic motor drive, high and low speed | ||||||
| Hoist hook lifting speed | ≈2.3m/min | ≈2.3m/min | ≥4.8m/min | 0-11m/min | 0-12m/min | 0-12m/min | 0-12m/min | 0-12m/min |
| Wire rope diameter and length | Φ8mmx20m（Max) | Φ8mmx20m（Max) | Φ8mmx45m（Max) | Φ10mmx70m（Max) | Φ11mmx80m（Max) | Φ11mmx90m（Max) | Φ11mmx100m（Max) | Φ11mmx110m（Max) |
| Jib form | Utype automatic 4section | Utype automatic 5section | Utype automatic 5section | Hexagonal fully automatic 5-segment | Hexagonal fully automatic 5-segment | Hexagonal fully automatic 5-segment | Hexagonal fully automatic 5-segment | Hexagonal fully automatic 5-segment |
| Jib telescopic length / time | 30sec (fully extended) | 30sec (fully extended) | 26sec(fully extended) | 40sec(fully extended) | 50sec(fully extended) | 50sec (fully extended) | 50sec (fully extended) | 50sec (fully extended) |
| Jib angle / time | 0~70°/50sec | 0~70°/50sec | 0~75°/18sec | 0~78°/46sec | 0~78°/60sec | 0~78°/60sec | 0~78°/60sec | 0~78°/60sec |
| Slewing angle / time | 0-360°continuous/ 107sec | 0-360°continuous/45sec | 0-360°continuous/45sec | 0-360°continuous/120sec | 0-360°continuous/120sec | 0-360°continuous/120sec | 0-360°continuous/120sec | 0-360°continuous/120sec |
| Outrigger action form | Manual swing out,automatic leg support | Manual swing out,automatic leg support | Manual swing outn,hydraulic expansion | Manual swing out, hydraulic outriggers | Manual swing out,automatic leg support | Manual swing out,hydraulic expansion | Manual swing out,hydraulic expansion | Manual swing out，hydraulic expansion |
| Travel mode | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive, 2-speed | Hydraulic motor drive, 2-speed | Hydraulic motor drive, 2-speed | Hydraulic motor drive, 2-speed | Hydraulic motor drive, 2-speed |
| Travel speed | 0~0.3km/h | 0~0.3km/h | 0~0.8km/h | 0~2km/h | 0~2km/h | 0~2km/h | 0~2km/h | 0~2km/h |
| Gradient climbing ability | 20° | 20° | 20° | 20° | 20° | 20° | 20° | 20° |
| Crawler belt (length*width) | 1110mm*150mm | 1110mm*180mm | 1600mm*230mm | 2200mm*300mm | 2570mm*350mm | 2570mm*400mm | 2570mm*400mm | 3200mm*400mm |
| Overall dimensions (length*width*height) | 2260mm*600mm*1470mn | 2360mm*750mm*1470mn | 3400mm*950mm*1700mm | 4650mm*1400mm*2160mn | 5010mm*1600mm*2200mn | 5550mm*1850mm*2300mn | 6050mm*1850mm*2300mn | 6050mm*2000mm*2300mn |
| Hydraulic oil tank capacity | 20L | 20L | 40L | 70L | 130L | 130L | 130L | 130L |
| Power system | Gasoline engine + three-phase AC asynchronous motor | Diesel engine + three-phase AC asynchronous motor | ||||||
| Gasoline engine: Honda Gx390 | Diesel engine (optional): Changchai EV80+Yanmar 3TNV88+Yunnai YN25GB+Yunnai YN27GBZ+Yuchai | |||||||
| Note: For more parameter configuration information, please contact online customer service | ||||||||
Spider cranes can be optionally equipped with different configurations according to different construction requirements.
These optional configurations include:
☑ 2m to 4m long JIB: It can extend the working range of the crane and is suitable for operations in different height and distance scenarios.
☑ Electric control box: Oil and electric dual power systems are optional; can adapt to different working environment power conditions.
☑ Load Crane Basket: It is used for lifting personnel or materials, which is convenient for construction operations at height.
☑ Remote control: Facilitates operators to remotely control the crane and can view relevant working parameter information through the screen.
☑ One - key four - outrigger leveling: Simplifies the operation of outrigger leveling and improves the efficiency of crane setup.
☑ Off ground Induction for 4pcs outriggers: It can enhance the safety of the crane during operation by monitoring the ground contact situation of the outriggers.
Spider cranes prove to be highly efficient across a wide range of applications:
（1）Rooftop Work
Quickly transport construction materials to rooftops, reducing time and labor costs.
（2）Curtain Wall Installation
Handle heavy and cumbersome curtain wall units with precision, even on high - rise buildings.
（3）Restricted Access
Navigate tight spaces and confined areas with ease, thanks to their compact size and superior maneuverability.
（4）Steel Erection & Building Construction
Lift and position steel beams and other structural components with accuracy, ensuring smooth building construction.
（5）Civil Construction
Tackle various civil engineering tasks, from road construction to bridge building.
（6）Works on Uneven Ground
Operate stably on uneven terrains with their outrigger systems, ensuring safety and efficiency.
| Q：Are you a manufacturer or Trader ? |
| A：We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service. |
| Q：What is your payment term ? |
| A: T/T, L/C, West Union. T/T is usually. |
| Q：How long is the validity of quotation ? |
| A：Generally, our price is valid within 15 days from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market . |
| Q：What is your delivery time ? |
| A：Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. |
| If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days,It depend on the order quantity. |
| Q：Do you provide OEM/ODM Service ? |
| A：Yes, offer us necessary information, we provide custom-make service to meet different needs of global clients with different budgets. |
| Q：Do you have CE certificate ? |
| A：Yes, most of our products have the CE certificate |
| Q：How can we ensure quality? |
| A：The final inspection is always carried out before shipment. |
| Q：How to install the equipment after purchasing ? |
| A：We will provide professional installation video to illustrate.Also provide manual. |
| Q：Do you offer a guarantee? |
| A：Yes, we guarantee our product for one year. Provide after-sales service support and technical support. |
We are a manufacturer and distributor of spider cranes, specializing in 1.2-18 ton cranes and offering customization services. High-quality spider cranes have earned the trust of customers in multiple countries.
