Model：SPCR-12AB/SPCR-12BB
Type：Diesel engine + Motor/Motor
Capacity：12T
Working Radius ：21.1m*1.0T
Max Ground Lifting Height：22m (4 ropes)
Engineered as a Tracked Spider Crane, this model features a robust tracked undercarriage that conquers uneven, rough, or soft terrain with ease. The tracks distribute weight evenly, ensuring stability on slopes, gravel, or muddy sites—critical for construction environments where traditional wheeled cranes struggle. This design minimizes setup time and maximizes mobility, keeping your project on schedule with high working efficiency.
Equipped with Long Arm Fly Jibs and a 30-meter main boom, this Spider Crane delivers exceptional vertical and horizontal reach, ideal for tall buildings, bridge construction, or infrastructure projects. Its ability to make a full 360-degree turn without repositioning the base ensures seamless material handling in tight spaces. Operators can rotate the cab and boom freely, precisely placing loads with speed and accuracy, even in complex layouts.
Designed specifically for construction applications, this crane combines power, agility, and reliability to meet the industry’s toughest demands. The tracked system reduces ground pressure, protecting delicate surfaces during operation, while the high-strength jibs handle heavy loads with stability. Whether lifting steel beams, installing precast components, or performing maintenance on tall structures, its efficiency and versatility make it an indispensable asset for any construction site.

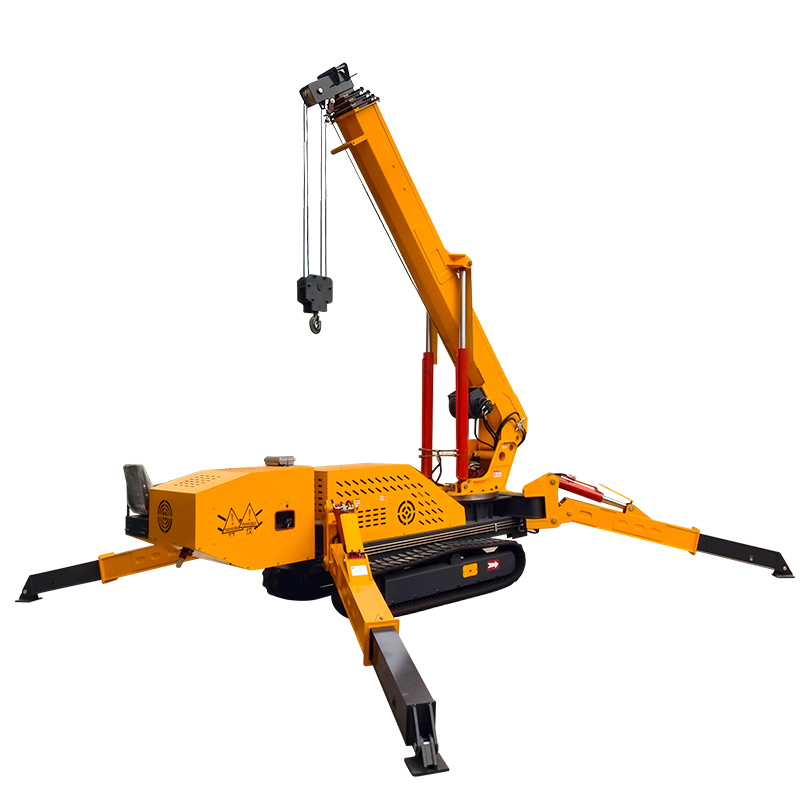

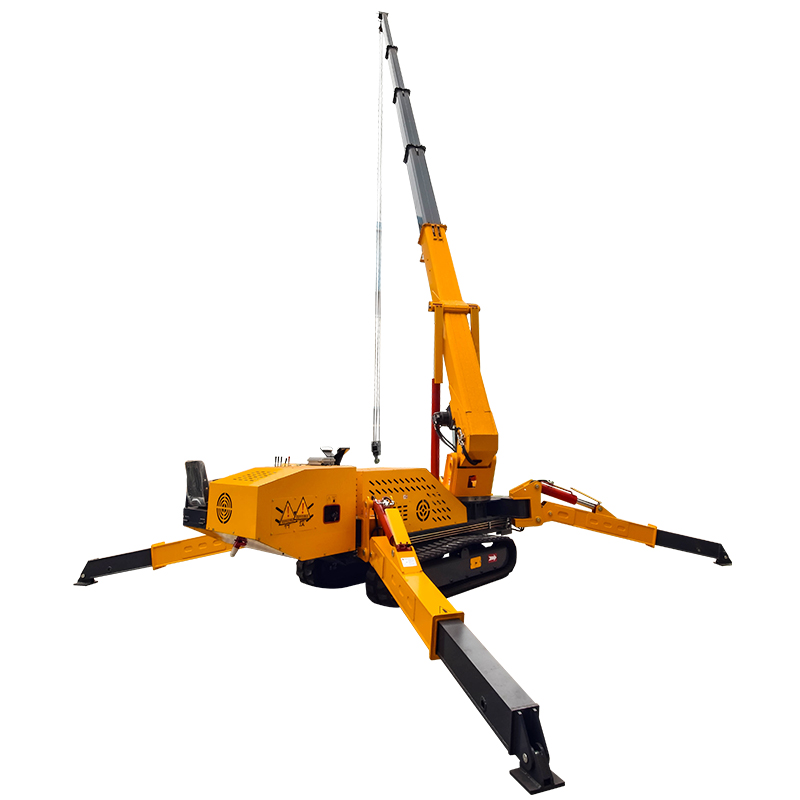

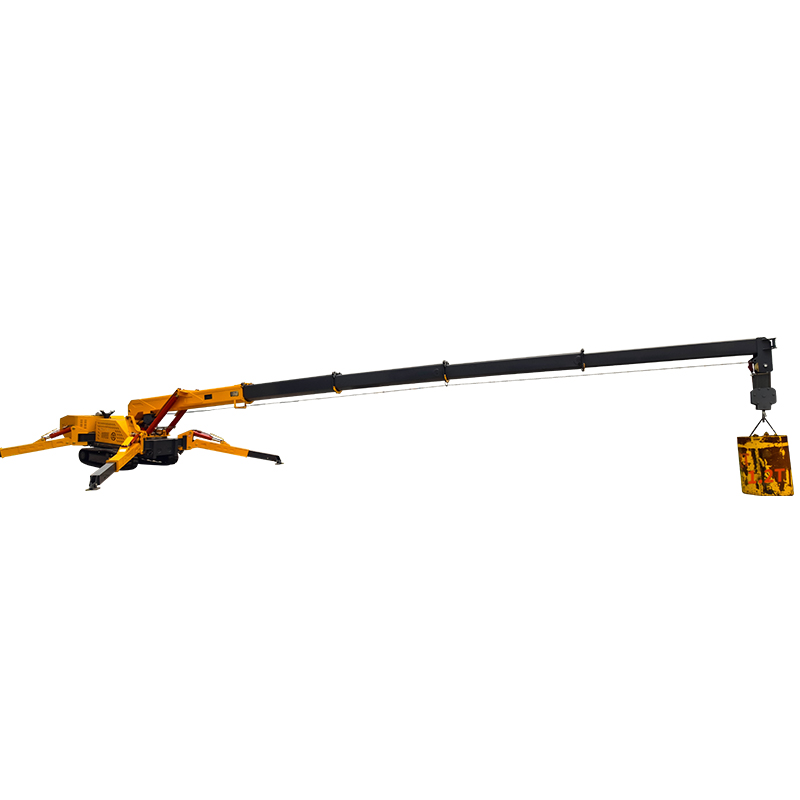

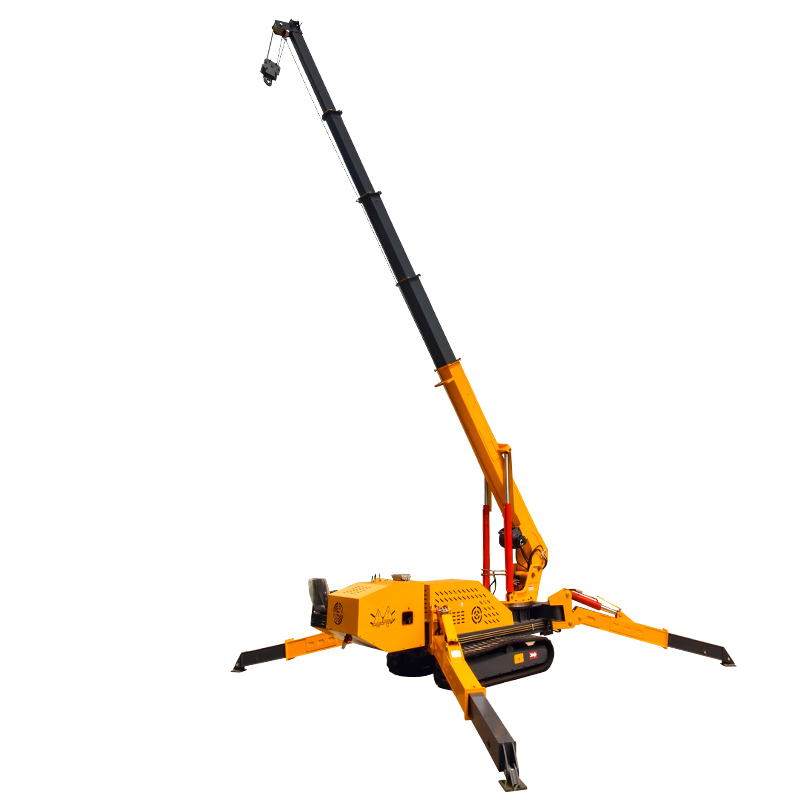

Product Real Photos
| Model No. | SPCR-1.0 | SPCR-2.0 | SPCR-3.0 | SPCR-5.0 | SPCR-8.0 | SPCR-10 | SPCR-12 | SPCR-14 |
| Specifications | 1T | 2T | 2.95T | 5T | 8T | 10T | 12T | 14T |
| Maximum operating radius | 5.2m*0.25T | 6m*0.25T | 9.3m*0.2T | 14.8m*0.3T | 17.1m*0.3T | 18.6m*0.4T | 21.1m*1.0T | 21.1m*1.2T |
| Maximum above - ground lifting height | 8m | 8m | 9.8m | 16m | 18m | 19.6m | 22m | 22m |
| Maximum below - ground lifting height | 20m | 20m | 45m | 65m | 80m | 80m | 80m | 80m |
| Hoisting method | Hydraulic motor drive | Hydraulic motor drive, high and low speed | ||||||
| Hoist hook lifting speed | ≈2.3m/min | ≈2.3m/min | ≥4.8m/min | 0-11m/min | 0-12m/min | 0-12m/min | 0-12m/min | 0-12m/min |
| Wire rope diameter and length | Φ8mmx20m（Max) | Φ8mmx20m（Max) | Φ8mmx45m（Max) | Φ10mmx70m（Max) | Φ11mmx80m（Max) | Φ11mmx90m（Max) | Φ11mmx100m（Max) | Φ11mmx110m（Max) |
| Jib form | Utype automatic 4section | Utype automatic 5section | Utype automatic 5section | Hexagonal fully automatic 5-segment | Hexagonal fully automatic 5-segment | Hexagonal fully automatic 5-segment | Hexagonal fully automatic 5-segment | Hexagonal fully automatic 5-segment |
| Jib telescopic length / time | 30sec (fully extended) | 30sec (fully extended) | 26sec(fully extended) | 40sec(fully extended) | 50sec(fully extended) | 50sec (fully extended) | 50sec (fully extended) | 50sec (fully extended) |
| Jib angle / time | 0~70°/50sec | 0~70°/50sec | 0~75°/18sec | 0~78°/46sec | 0~78°/60sec | 0~78°/60sec | 0~78°/60sec | 0~78°/60sec |
| Slewing angle / time | 0-360°continuous/ 107sec | 0-360°continuous/45sec | 0-360°continuous/45sec | 0-360°continuous/120sec | 0-360°continuous/120sec | 0-360°continuous/120sec | 0-360°continuous/120sec | 0-360°continuous/120sec |
| Outrigger action form | Manual swing out,automatic leg support | Manual swing out,automatic leg support | Manual swing outn,hydraulic expansion | Manual swing out, hydraulic outriggers | Manual swing out,automatic leg support | Manual swing out,hydraulic expansion | Manual swing out,hydraulic expansion | Manual swing out，hydraulic expansion |
| Travel mode | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive | Hydraulic motor drive, 2-speed | Hydraulic motor drive, 2-speed | Hydraulic motor drive, 2-speed | Hydraulic motor drive, 2-speed | Hydraulic motor drive, 2-speed |
| Travel speed | 0~0.3km/h | 0~0.3km/h | 0~0.8km/h | 0~2km/h | 0~2km/h | 0~2km/h | 0~2km/h | 0~2km/h |
| Gradient climbing ability | 20° | 20° | 20° | 20° | 20° | 20° | 20° | 20° |
| Crawler belt (length*width) | 1110mm*150mm | 1110mm*180mm | 1600mm*230mm | 2200mm*300mm | 2570mm*350mm | 2570mm*400mm | 2570mm*400mm | 3200mm*400mm |
| Overall dimensions (length*width*height) | 2260mm*600mm*1470mn | 2360mm*750mm*1470mn | 3400mm*950mm*1700mm | 4650mm*1400mm*2160mn | 5010mm*1600mm*2200mn | 5550mm*1850mm*2300mn | 6050mm*1850mm*2300mn | 6050mm*2000mm*2300mn |
| Hydraulic oil tank capacity | 20L | 20L | 40L | 70L | 130L | 130L | 130L | 130L |
| Power system | Gasoline engine + three-phase AC asynchronous motor | Diesel engine + three-phase AC asynchronous motor | ||||||
| Gasoline engine: Honda Gx390 | Diesel engine (optional): Changchai EV80+Yanmar 3TNV88+Yunnai YN25GB+Yunnai YN27GBZ+Yuchai | |||||||
| Note: For more parameter configuration information, please contact online customer service | ||||||||
Spider cranes are applicable to a wide range of works including glazing, rooftop, curtain wall installation, operations in restricted/limited access areas, residential and civil construction, works on uneven ground, municipal engineering, stonework as well as other works.
1. Roof work
Spider cranes can be placed on the roof and lift materials from the ground. Achieve shorter construction cycles and cost reductions. Spider cranes can be easily lifted to the roof by tower cranes or elevators.
2. Curtain wall installation
Spider cranes are widely used in curtain wall construction and can be used for vertical transportation, hoisting, etc. They are particularly suitable for the installation of unit panels with large changes in the facade.
3. Glass engineering
By using the vacuum glass suction cups installed on the spider crane search hook, glass can be installed even under the roof.
4. Municipal engineering
Spider cranes have been used in many municipal construction machinery operations due to their flexibility in narrow places. Such as airports, railway stations, large bank construction sites, etc.
5. Power engineering
Spider cranes can perfectly solve the problem that the substation roads and construction sites are narrow, the construction environment is relatively complex, and large cranes cannot enter the construction.
6. Building construction
With its excellent accessibility, spider cranes can be used for installation work in large commercial buildings and construction sites.
Are you a manufacturer or Trader ?
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
What is your payment term ?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation ?
Generally, our price is valid within 15 days from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
What is your delivery time ?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit.
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days,It depend on the order quantity.
Do you provide OEM/ODM Service ?
Yes, offer us necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Do you have CE certificate ?
Yes, most of our products have the CE certificate
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing ?
We will provide professional installation video to illustrate.Also provide manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support and technical support.
We are a manufacturer and distributor of spider cranes, specializing in 1.2-18 ton cranes and offering customization services. High-quality spider cranes have earned the trust of customers in multiple countries.
